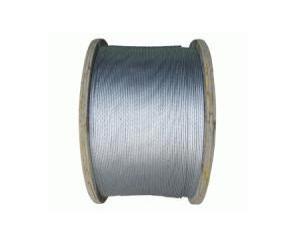

本產品捻制緊密均勻，鍍鋅層光潔牢固，耐腐蝕性強,采用熱鍍鋅垂直工藝，確保鋅層厚度。產品用于吊架、懸掛、通訊電線，架空電力線以及固定物體拴系等。
| 結構 | 鋼絲直徑mm | 鋼絞線直徑mm | 鋼絞線面積mm2 | 公稱搞拉強度MPa | 參考重量KG/100m | ||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| 鋼絲破斷拉力總和,KN,不小于 | |||||||||
| 1×3 | 2.90 | 6.2 | 19.82 | 23.29 | 25.17 | 27.25 | 29.14 | 31.12 | 15.99 |
| 3.20 | 6.4 | 24.13 | 28.35 | 30.65 | 33.06 | 35.47 | 37.88 | 19.47 | |
| 3.50 | 7.5 | 28.86 | 33.91 | 36.65 | 39.54 | 42.43 | 45.31 | 23.29 | |
| 4.00 | 8.6 | 37.70 | 44.30 | 48.88 | 51.65 | 55.42 | 59.19 | 30.42 | |
| 1×7 | 1.00 | 3.0 | 5.50 | 6.46 | 6.98 | 7.54 | 8.08 | 8.64 | 4.37 |
| 1.20 | 3.6 | 7.92 | 9.31 | 10.06 | 10.85 | 11.64 | 12.43 | 6.29 | |
| 1.40 | 4.2 | 10.78 | 12.67 | 13.69 | 14.77 | 15.85 | 16.92 | 8.56 | |
| 1.60 | 4.8 | 14.07 | 16.53 | 17.87 | 19.28 | 20.68 | 22.09 | 11.17 | |
| 1.80 | 5.4 | 17.81 | 20.93 | 22.62 | 24.40 | 26.18 | 27.96 | 14.14 | |
| 2.00 | 6.0 | 21.99 | 25.84 | 29.73 | 30.13 | 32.32 | 34.52 | 17.46 | |
| 2.30 | 6.9 | 29.08 | 34.17 | 36.93 | 39.84 | 42.75 | 45.66 | 23.09 | |
| 2.60 | 7.8 | 37.17 | 43.60 | 47.20 | 50.92 | 54.63 | 58.35 | 29.51 | |
| 2.90 | 8.7 | 46.24 | 54.33 | 58.72 | 63.35 | 67.97 | 72.60 | 36.71 | |
| 3.20 | 9.6 | 56.30 | 66.15 | 71.50 | 77.13 | 82.76 | 88.39 | 44.70 | |
| 3.50 | 10.5 | 67.35 | 79.14 | 85.85 | 92.27 | 99.00 | 105.74 | 53.48 | |
| 3.80 | 11.4 | 79.39 | 93.28 | 100.82 | 108.76 | 116.70 | 124.64 | 63.04 | |
| 4.00 | 12.0 | 87.96 | 103.35 | 111.71 | 120.50 | 129.30 | 138.10 | 69.84 | |
| 1×19 | 1.60 | 8.0 | 38.20 | 44.88 | 48.51 | 52.33 | 56.15 | 59.97 | 30.40 |
| 1.80 | 9.0 | 48.35 | 56.81 | 61.40 | 66.24 | 71.07 | 75.91 | 38.49 | |
| 2.00 | 10.0 | 59.69 | 70.14 | 75.81 | 81.78 | 87.74 | 93.71 | 47.51 | |
| 2.30 | 11.5 | 78.94 | 92.75 | 100.25 | 108.15 | 116.04 | 123.94 | 62.84 | |
| 2.60 | 13.0 | 100.88 | 118.53 | 128.25 | 138.20 | 148.29 | 158.38 | 80.30 | |
| 2.90 | 14.5 | 125.50 | 147.46 | 159.38 | 171.93 | 184.48 | 197.03 | 99.90 | |
| 3.20 | 16.0 | 152.81 | 179.55 | 194.06 | 209.35 | 224.63 | 239.91 | 121.64 | |
| 3.50 | 17.5 | 182.80 | 214.79 | 232.06 | 250.44 | 268.72 | 287.00 | 145.51 | |
| 4.00 | 20.0 | 238.76 | 280.54 | 303.23 | 327.10 | 350.98 | 374.86 | 190.05 | |
| 1×37 | 1.60 | 11.2 | 74.39 | 87.41 | 94.48 | 101.91 | 109.35 | 116.79 | 59.50 |
| 1.80 | 12.6 | 94.15 | 110.63 | 119.57 | 128.99 | 134.40 | 147.82 | 75.31 | |
| 2.00 | 14.0 | 116.24 | 136.58 | 147.62 | 159.25 | 170.87 | 182.50 | 92.97 | |
| 2.30 | 16.1 | 153.73 | 180.63 | 195.24 | 210.61 | 225.98 | 241.36 | 122.96 | |
| 2.60 | 18.2 | 196.44 | 230.82 | 249.48 | 269.12 | 288.77 | 308.41 | 157.13 | |
| 2.90 | 20.3 | 244.39 | 287.16 | 310.38 | 334.81 | 359.25 | 383.69 | 195.48 | |
| 3.20 | 22.4 | 297.57 | 349.64 | 377.91 | 407.67 | 437.43 | 467.18 | 238.01 | |
| 3.50 | 24.5 | 355.98 | 418.28 | 452.09 | 487.69 | 523.29 | 558.89 | 284.73 | |
| 4.00 | 28.0 | 464.96 | 546.33 | 590.50 | 637.00 | 683.49 | 729.99 | 371.90 | |
